Heidelberg SM 74 CD
(All sizes in mm)
| Inkers |
Colour |
Prod Code |
Set Qty |
Roller Dia |
Face Length |
Total Length |
| Form Oscillator |
Blue |
HE442 |
1 |
60 |
754 |
792 |
| Form Oscillator |
Red |
HE443 |
1 |
72 |
754 |
792 |
| Form Oscillator |
White |
HE441 |
1 |
78 |
754 |
792 |
| Form Oscillator |
Yellow |
HE444 |
1 |
66 |
754 |
792 |
| Distributor |
Red |
HE445 |
1 |
66 |
752 |
817 |
| Distributor |
White |
HE446 |
1 |
80 |
752 |
824 |
| Ink Transfer (Hollow) |
Red |
HE447 |
1 |
66 |
752 |
752 |
| Ink Ductor |
Violet |
HE448 |
1 |
60 |
752 |
817 |
| Total Set Quantity |
|
|
8 |
|
|
|
| |
|
|
|
|
|
|
| Alcolor Dampening Systems |
| Alcolor Water Form - Complete |
Blue |
HE449 |
1 |
70 |
752 |
782 |
| Alcolor Pan Roller Complete |
Blue |
HE450 |
1 |
76 |
795 |
828 |
|
 |

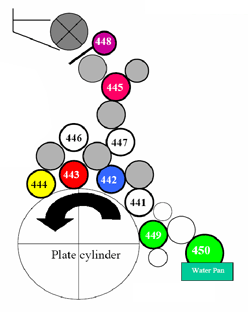

Roller
Configuration Diagram |
 |
 |
|
Stripe Settings
Ductor #10 4mm to dist
Ink forms #1 and #2 5mm to dist, 4mm to plate
Ink forms #3 and #4 5mm to dist, 3mm to plate
#12 to #13 W/Form 3mm
#12 to #1 Ink form 3mm
A roller fitting service is now available by a skilled technician, with settings adjusted to manufacturers recommendations.
|
|
 |
|
|
|
|
